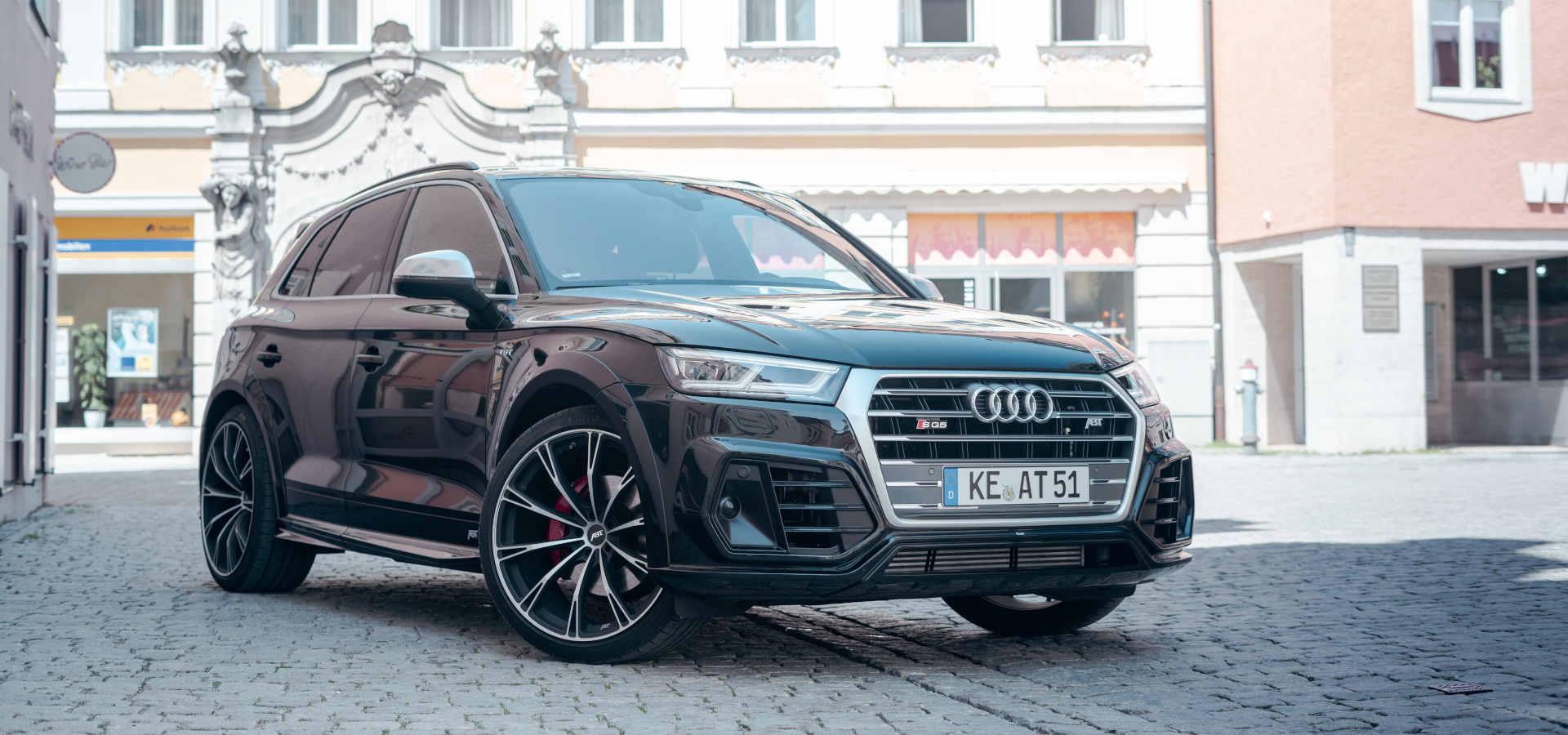

Q5 (80A0)

ABT Aerodynamics

品番 品名 仕様 希望小売価格 コード

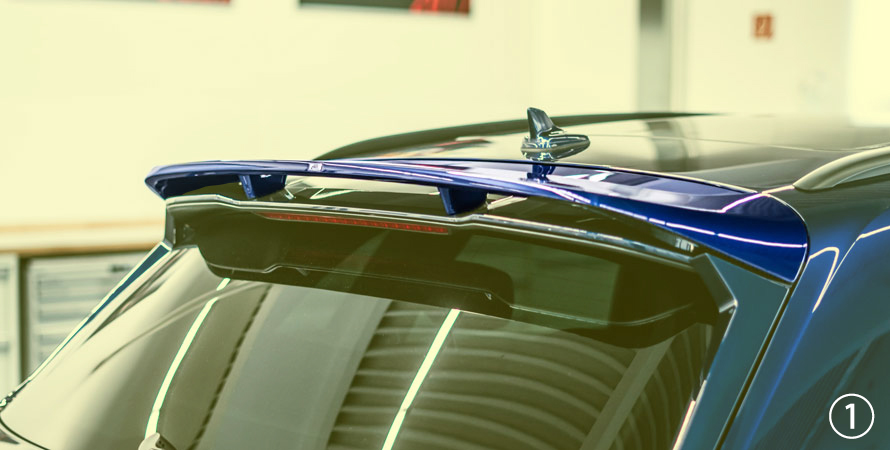

80A08006140 ① ABT - REAR WING material PUR / primed ¥104,000 E
80A08006000 ② ABT - AERO PACKAGE WIDE BODY ABT Aero package wide body / trim strips silver
suitable for vehicles with 2.0 TFSI engines
consisting of:
· 80A08006110-1  ABT - front skirt
· 80A08006160  ABT - fender extensions
· 80A08006260  ABT - door strip attachments
· 80A08006130  ABT - rear skirt set
incl. rear muffler and end pipes
· 80A02006110  ABT - rear muffler and end pipes
ABT rear wing can be installed additionally		 ¥1,044,000 E
80A08006000SW - ABT - AERO PACKAGE WIDE BODY ABT Aero package wide body / trim strips gloss black
suitable for vehicles with 2.0 TFSI engines
consisting of:
· 80A08006110-2  ABT - front skirt
· 80A08006160  ABT - fender extensions
· 80A08006260  ABT - door strip attachments
· 80A08006130  ABT - rear skirt set
incl. rear muffler and end pipes
· 80A02006110  ABT - rear muffler and end pipes
ABT rear wing can be installed additionally		 ¥1,044,000 E

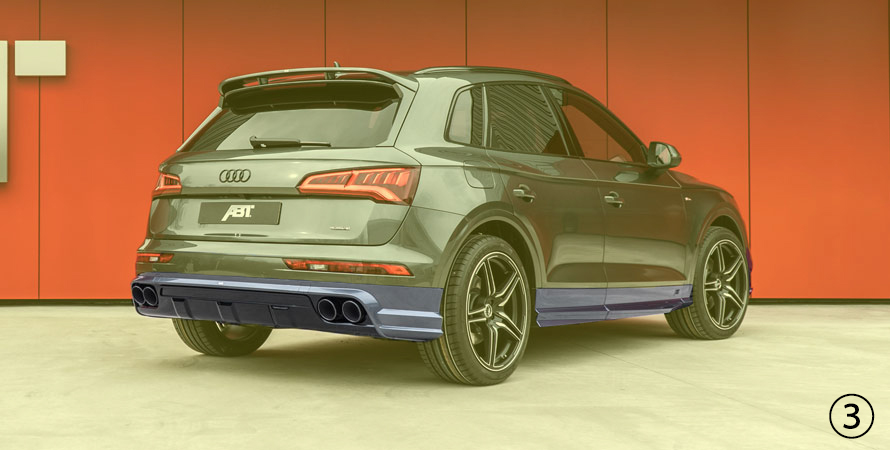

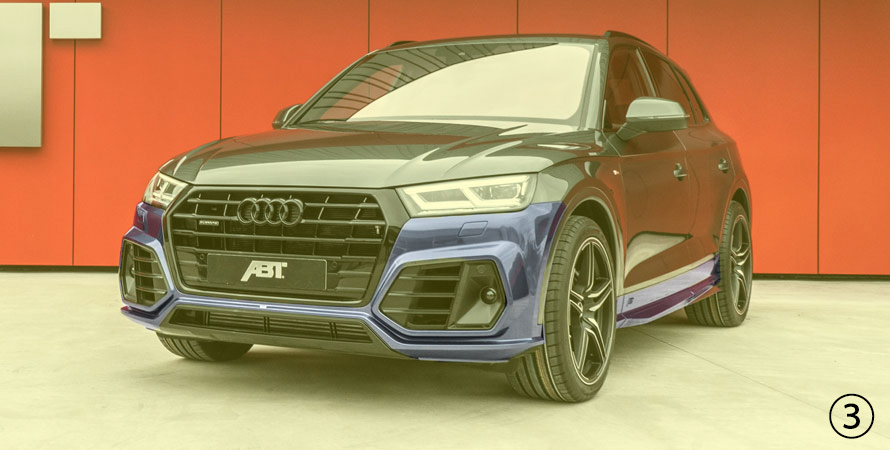

80A08006001 ③ ABT - AERO PACKAGE SLIM BODY ABT Aero package / trim strips silver
suitable for vehicles with 2.0 TFSI engines
consisting of:
· 80A08006110-1  ABT - front skirt
· 80A08006260  ABT - door strip attachments
· 80A08006130  ABT - rear skirt set
incl. rear muffler and end pipes
· 80A02006110  ABT - rear muffler and end pipes
ABT rear wing can be installed additionally		 ¥835,000 E
80A08006001SW - ABT - AERO PACKAGE SLIM BODY ABT Aero package / trim strips gloss black
suitable for vehicles with 2.0 TFSI engines
consisting of:
· 80A08006110-2  ABT - front skirt
· 80A08006260  ABT - door strip attachments
· 80A08006130  ABT - rear skirt set
incl. rear muffler and end pipes
· 80A02006110  ABT - rear muffler and end pipes
ABT rear wing can be installed additionally		 ¥835,000 E
80A08006130-2 - ABT - REAR SKIRT SET material PUR / primed, for 2,0 TFSI quattro
consisting of:
- 80A08006130  ABT rear skirt
- 80A02006110  ABT 4-pipe rear muffler
Ø102mm, material: stainless steel		 ¥420,000 E
80A08006410-3 - AUDI RINGS - EMBLEM SET ""GLOSSY BLACK"" Audi rings emblem set black shiny
frontgrill, trunk door		 ¥49,000 E
AN8000270-1 - ABT - FRONT GRILLE EMBLEM SET CHROME mounting device incl. ABT-logo in chrome ¥5,000 E
AN8000270-2 - ABT - FRONT GRILLE EMBLEM SET MATT BLACK mounting device incl. ABT-logo in matt black ¥5,000 E
AN8000270-4 - ABT - FRONT GRILLE EMBLEM SET GLOSSY BLACK mounting device incl. ABT-logo in glossy black ¥7,000 E

ABT Wheel sets

品番 品名 仕様 希望小売価格 コード

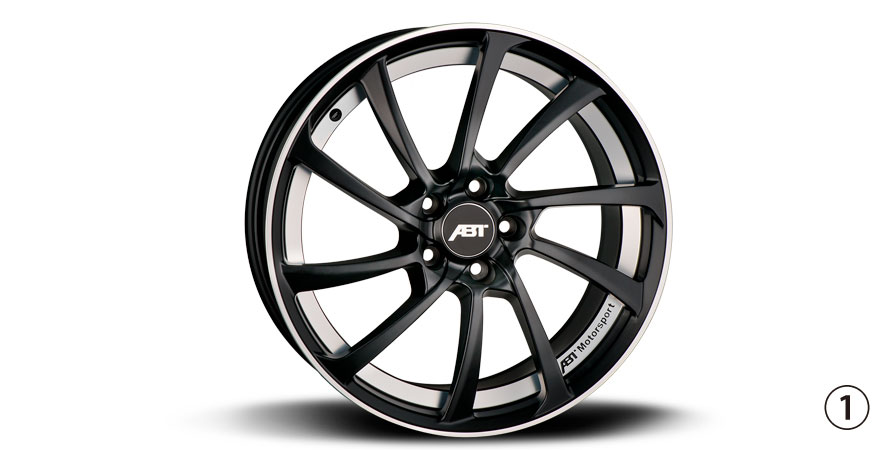

FDR2090351266MB-01 ① ABT - DR20 - SPORT
ALLOY WHEEL SET		 DR20 - 9.0 x 20 - bolt circle: 5/112
offset: 35 - hub diamter: 66.5 mm - ball: 28.0 mm
color: mystic black		 ¥686,000 C
FDR2190351266MB-30-2 ① ABT - DR21 - SPORT
ALLOY WHEEL SET		 DR21 - 9,0 x 21 - bolt circle: 5/112
offset: 35 - center bore: 66,5 mm - ball: 28,0 mm
color: mystic black - incl. ABT spacers
2 x HR30556645665-4(15ｍｍ)		 ¥897,000 C
FERC2090401266MB-30-2 ② ABT - ER-C20 - SPORT
ALLOY WHEEL SET		 ER-C20 - 9,0 x 20 - bolt circle: 5/112
offset: 40 - center bore: 66,45 mm - ball: 25,6 mm -
color: matt black - incl. ABT wheel
spacer set 2 x HR30556645665-7(15ｍｍ)		 ¥741,000 C

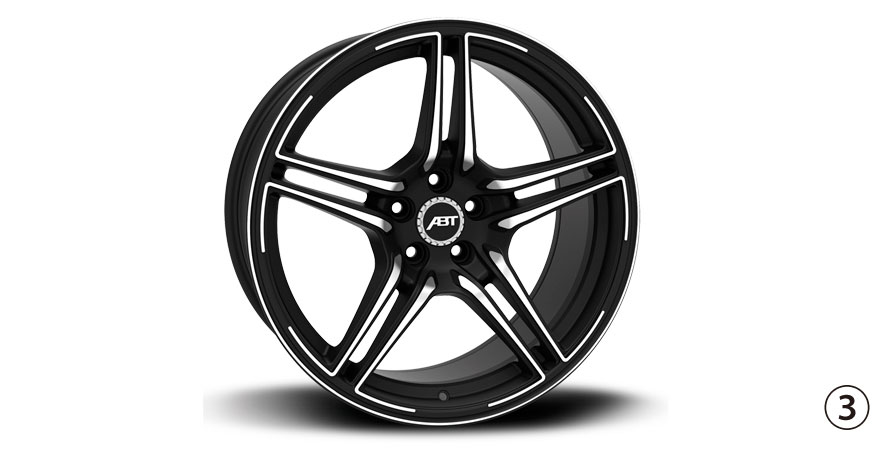

FFRC2195381266-23 ③ ABT - FR21 - SPORT
ALLOY WHEEL SET		 FR21 - 9,5 x 21 - bolt circle: 5/112
offset: 38 - hub diameter: 66,45 mm - ball: 25,6 mm
color: mystic black  incl. wheel spacer
set HR2355668-1(11.5ｍｍ)		 ¥917,000 C

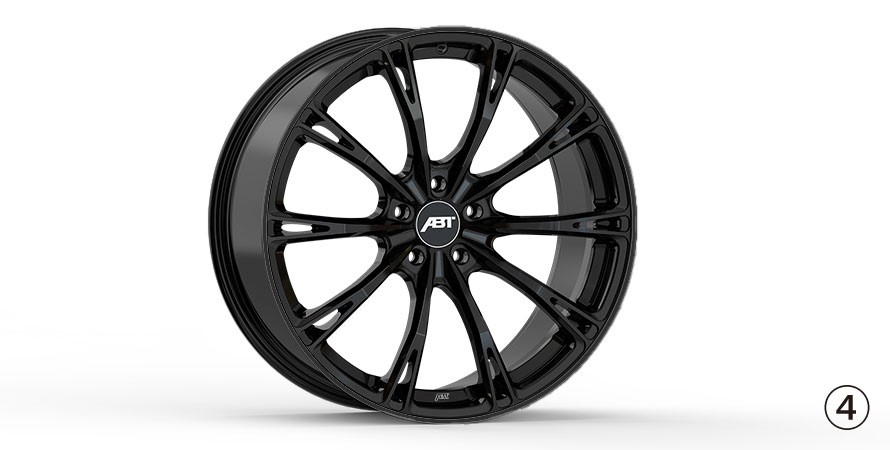

FGRC2090331266GB-23 ④ ABT - SPORT GR20
GLOSSY BLACK - SPORT ALLOY WHEEL SET		 GR20 - 9.0 x 20 - bolt circle: 5/112
offset: 33 - hub diameter: 66.5 mm - cone: 60°
color: glossy black
lip - incl. wheel spacer set HR2355668-3(11.5ｍｍ)		 ¥784,000 C

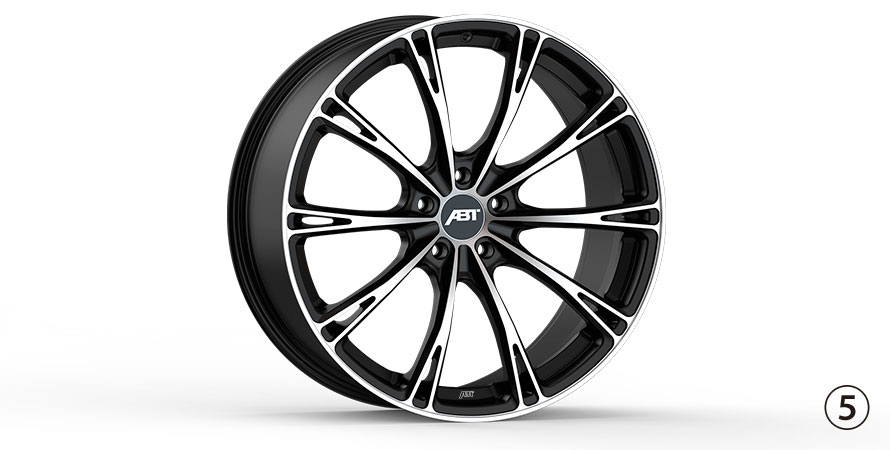

FGRC2090331266MB-23 ⑤ ABT - SPORT GR20
MATT BLACK - SPORT ALLOY WHEEL SET		 GR20 - 9.0 x 20 - bolt circle: 5/112
offset: 33 - hub diameter: 66.5 mm - cone: 60°
color: matt black / diamond polished -
incl. wheel spacer set HR2355668-3(11.5ｍｍ)		 ¥784,000 C

for Wide Body Kit

FDR2090351266MB-30-2 ① ABT - DR20 - SPORT
ALLOY WHEEL SET		 DR20 - 9.0 x 20 - bolt circle: 5/112
offset: 35 - hub diamter: 66.5 mm - ball: 28.0 mm
color: mystic black - incl. ABT spacers
2 x HR30556645665-4(15ｍｍ)		 ¥764,000 C
FDR2210523071MB-60-2 ① ABT - DR22 - SPORT
ALLOY WHEEL SET		 DR22 - 10,0 x 22 - bolt circle: 5/130
offset: 52 - hub diameter: 71,6 mm - ball: 28,0 mm
color: mystic black - incl. ABT spacers
HR6059566510-1(30ｍｍ)
Attention: Audi SQ7 not in combination
with Audi ceramic brakes PR-Nr.: 1LT		 ¥1,013,000 C
FFRC2195381266-30-2 ③ ABT - FR21 - SPORT
ALLOY WHEEL SET		 FR21 - 9,5 x 21 - bolt circle: 5/112
offset: 38 - hub diameter: 66,45 mm - ball: 25,6 mm
color: mystic black  incl. wheel spacer
set 2 x HR30556645665-7		 ¥920,000 C
FFRC2210301266-23-1 ③ ABT - FR22 - SPORT
ALLOY WHEEL SET		 FR22 - 10 x 22 - bolt circle: 5/112
offset: 30 - hub diameter: 66,45 mm - ball: 25,6 mm
color: mystic black - incl. wheel spacer
set HR2355668-1(11.5ｍｍ)		 ¥1,013,000 C
FGRC2090331266GB-30 ④ ABT - SPORT GR20
GLOSSY BLACK - SPORT ALLOY WHEEL SET		 GR20 - 9.0 x 20 - bolt circle: 5/112
offset: 33 - hub diameter: 66.5 mm - cone: 60°
color: glossy black / diamond polished
lip - incl. wheel spacer set
HR30556645665-8		 ¥784,000 C
FGRC2090331266MB-30 ⑤ ABT - SPORT GR20
MATT BLACK - SPORT ALLOY WHEEL SET		 GR20 - 9.0 x 20 - bolt circle: 5/112
offset: 33 - hub diameter: 66.5 mm - cone: 60°
color: matt black / diamond polished -
incl. wheel spacer set HR30556645665-8(15ｍｍ)		 ¥784,000 C
FGRC2110211266GB-01-01 ④ ABT - SPORT GR21
GLOSSY BLACK - SPORT ALLOY WHEEL SET		 GR21 - 10,0 x 21 - bolt circle: 5/112
offset: 21 - hub diameter: 66,5 mm - conus: 60°
color: glossy black diamond polished lip		 ¥841,000 C
FGRC2110211266MB-01-01 ⑤ ABT - SPORT GR21
MATT BLACK - SPORT ALLOY WHEEL SET		 GR21 - 10,0 x 21 - bolt circle: 5/112
offset: 21 - hub diameter: 66,5 mm - conus: 60°
color: matt black diamond polished		 ¥841,000 C
FGRC2210201266GB-01 ④ ABT - SPORT GR22
GLOSSY BLACK - SPORT ALLOY WHEEL SET		 GR22 - 10.0 x 22 - bolt circle: 5/112
offset: 20 - hub diameter: 66.5 mm - cone: 60°
color: glossy black / diamond polished lip		 ¥931,000 C
FGRC2210201266MB-01 ⑤ ABT - SPORT GR22
MATT BLACK - SPORT ALLOY WHEEL SET		 GR22 - 10.0 x 22 - bolt circle: 5/112
offset: 20 - hub diameter: 66.5 mm - cone: 60°
color: matt black / diamond polished		 ¥931,000 C
FHR12210201266DS-01-1 ⑥ ABT - SPORT HR22
AERO DARK SMOKE - SPORT ALLOY WHEEL SET		 HR22 - 10,0 x 22 - bolt circle: 5/112
offset: 20 - hub diameter: 66,5 mm - cone: 60°
color: dark smoke with aero-disc in matt black		 ¥1,140,000 C

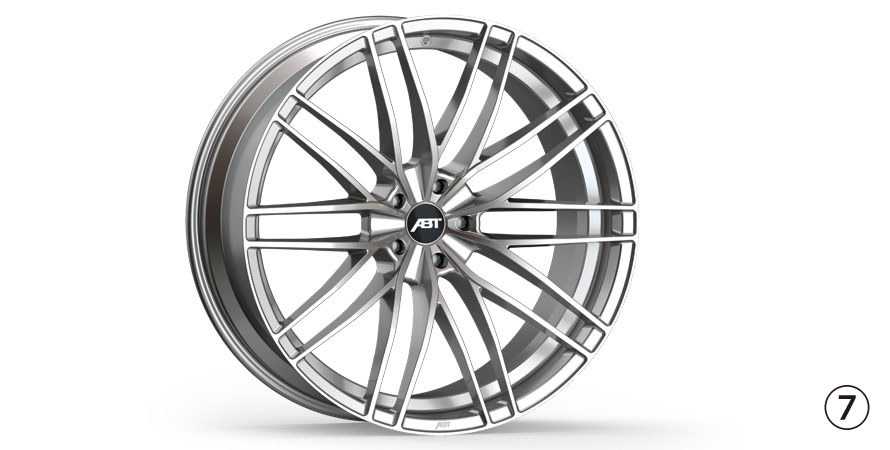

FHR22210201266SHS-01-1 ⑦ ABT - HIGH PERFORMANCE HR22
SHADOW SILVER - SPORT ALLOY WHEEL SET		 HR22 - 10,0 x 22 - bolt circle: 5/112
offset: 20 - hub diameter: 66,5 mm - cone: 60°
color: shadow silver / flowforming wheel		 ¥1,100,000 C

ABT Height adjustable Suspension

品番 品名 適合 希望小売価格 コード

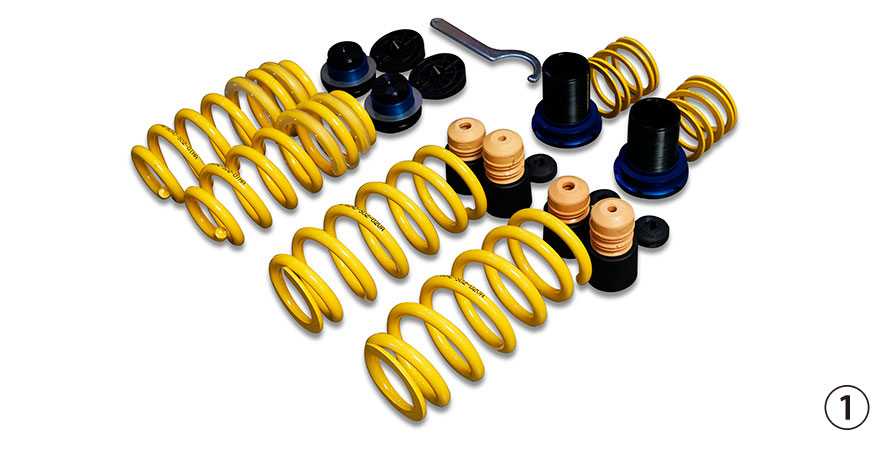

80A05006110 ① ABT - HEIGHT ADJUSTABLE-SUSPENSION SPRINGS only for Q5, SQ5 with quattro
Axle load limit: front axle: 1350 kg, rear axle: 1370 kg
Lowering: front axle: 35-60mm, rear axle: 35-60mm		 ¥166,000 E
80A05006120 ① ABT - HEIGHT ADJUSTABLE-SUSPENSION SPRINGS only for Q5 with quattro
Axle load limit: front axle: 1350 kg, rear axle: 1370 kg
Lowering: front axle: 15-40mm, rear axle: 15-40mm		 ¥166,000 E

ABT interior

品番 品名 適合 希望小売価格 コード

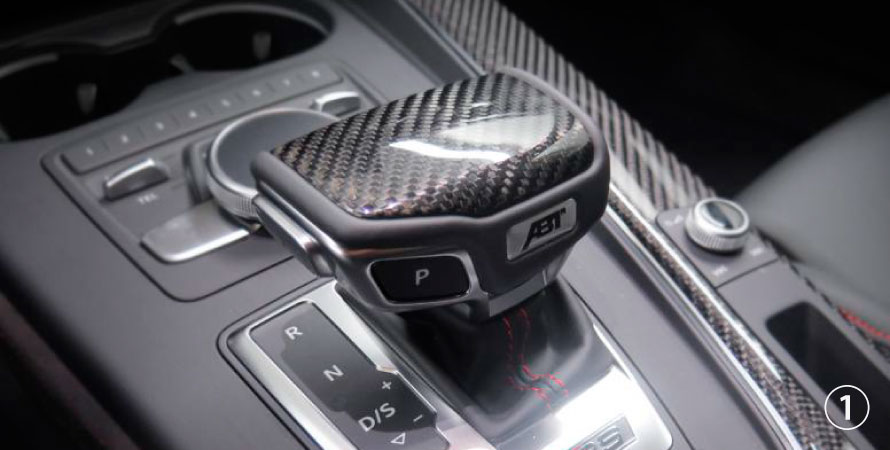

AN707001240-1 ① ABT - SHIFT KNOB COVER leather - carbon / 1 piece incl. ABT logo ¥103,000 E
8W607024130 ② ABT - START-STOP-SWITCH-CAP Start-Stop Switch Cap with ABT-logo,
only suitable for left hand driven vehicles
with integrated illuminated ABT Logo		 ¥8,000 E
8W607024131 ② ABT - START-STOP-SWITCH-CAP RHD Start-Stop Switch Cap with ABT-logo,
only suitable for right hand driven vehicles
with integrated illuminated ABT Logo		 ¥8,000 E

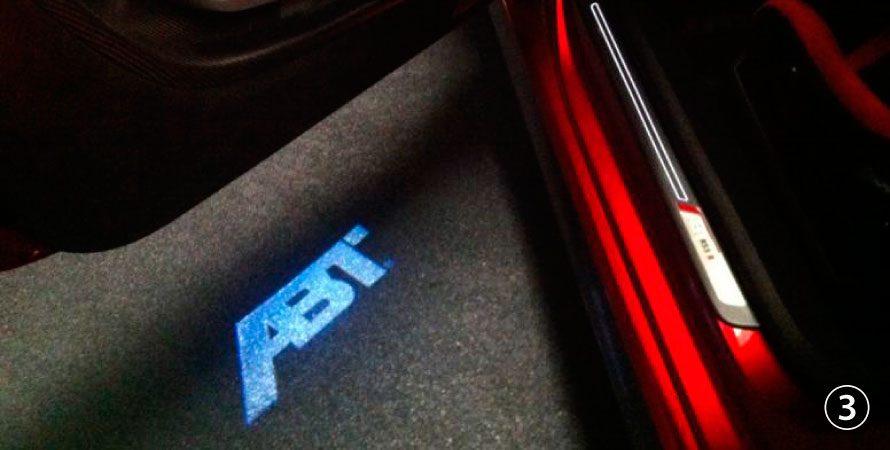

AN0700160 ③ ABT - INTEGRATED ENTRANCE LIGHTS for Audi vehicles with serial integrated entrance lights
set of 2 LED lights with ABT logo
for front and passenger door		 ¥12,000 E
